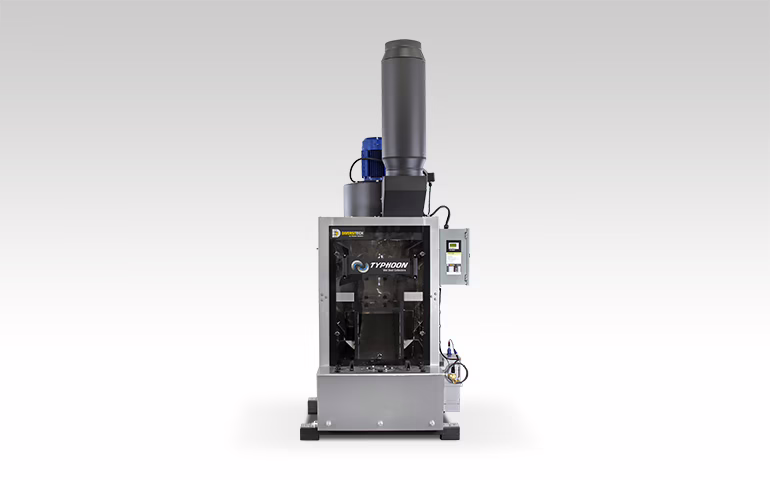

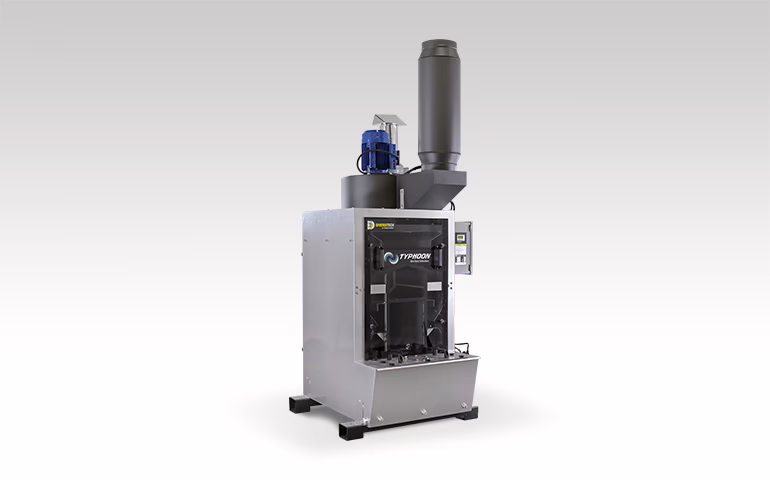

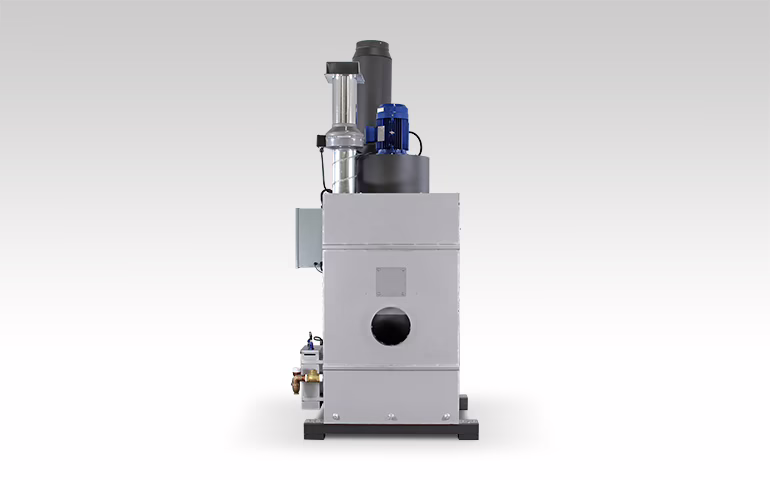

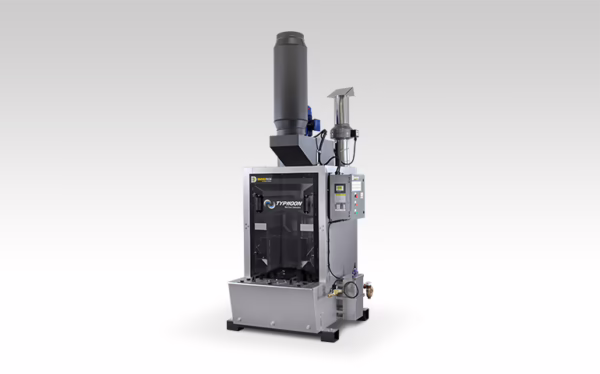

TYPHOON WX-3000 WET DUST COLLECTOR

Overview

Eliminate the risk of fire and explosion due to combustible dust with Diversitech’s Typhoon WX-3000 Wet Dust Collector. With the ability to capture airborne particulate as small as 3 micron at source, the Typhoon WX-3000 guarantees cleaner air for your industrial setting. Safely removing hazardous combustible dust from your workplace, the Typhoon WX-3000 uses a 5 HP blower to draw in airborne contaminants and filter them through Diversitech’s proprietary “water-tree” baffle design. Once inside the collector, the particles bond with suspended water droplets where they then drain down to the bottom of the collector for safe removal.

Automatically controlling water levels with valves and sensors, the Typhoon WX-3000 includes interlock functions to meet OSHA and NFPA codes. An optional wet-vacuum to clean the unit is available for fast and easy routine service.

For applications that generate dust further from the collector, empty downdraft tables or extraction arms are popular options. Ideal applications for a wet dust collector include: grinding & deburring, sanding & finishing, buffing, pharmaceutical dust, aluminum, titanium and magnesium.

Contact us for more info about purchasing a wet dust collector:

*Please note that for the Typhoon WX series with the strainer kit option:

• Drive coupler will now ship disconnected from the motor so that proper direction can easily be determined by the installer.
• A document will be included in the control panel with instructions on how to verify the correct direction of rotation and how to properly reattach the coupler.
• Typhoon Wet Dust Collector Product Guide

Benefits

Why choose a wet dust collector from Diversitech? Our machines give customers the following benefits:

• Compact footprint
• Adaptive Ultrasonic Water-level Control
• 100% Duty Cycle, online refill
• Compliant with NFPA guidelines for combustible dust

Features

Each wet dust collectior unit in the MONSOON line features the following attributes, carefully selected for quality and efficiency:

• Stainless Steel Anti-corrosion Construction
• 5 HP TEFC Motor producing up to 3000 CFM of Airflow
• Low-cost Mist Eliminator Filters
• 40 Gallon Water Capacity
• Nema 12 Control Panel with LCD Display

Options

Enhance your dust collection capabilities with these optional add-ons:

• Ducted Downdraft Table in four standard sizes
• WV-55 Sludge-Vac
• High-efficiency HEPA Afterfilter Kit (MERV 17)
• Bag Strainer System to remove dust and sludge
