AVANI WB 3500 Welding Booth

Overview

The WB-3500 welding booth is constructed of heavy (12 gauge) dual panel walls with both updraft and back-draft. Vacuum flow can be sourced from a stand alone filtered collector or a top mounted collector integral to the booth(s). This booth is available in both single or dual configuration and comes standard with overhead explosion proof lighting and debris clean-out drawers. This is Avani’s only “stand in front” booth with an optional fully enclosed wrap-around curtain.

Models

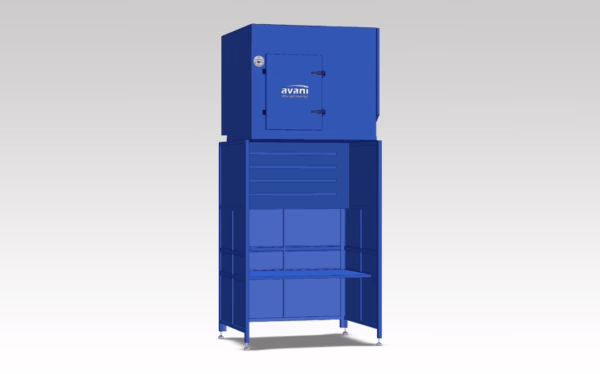

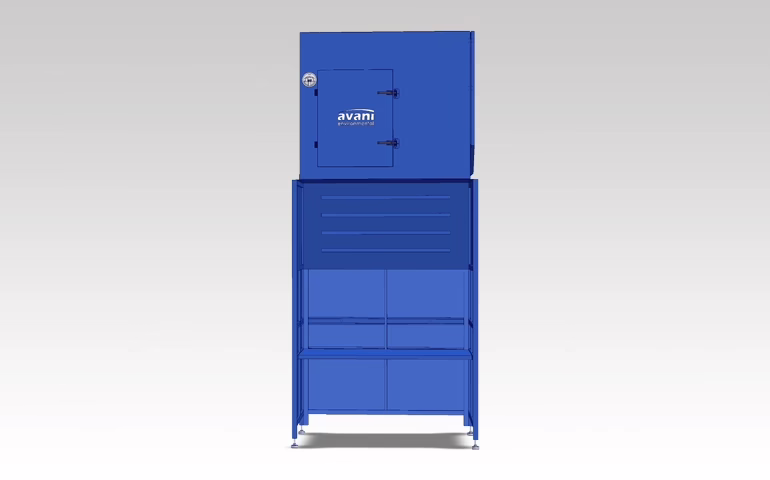

• WB-3555-S: 5' x 5' single booth with collector

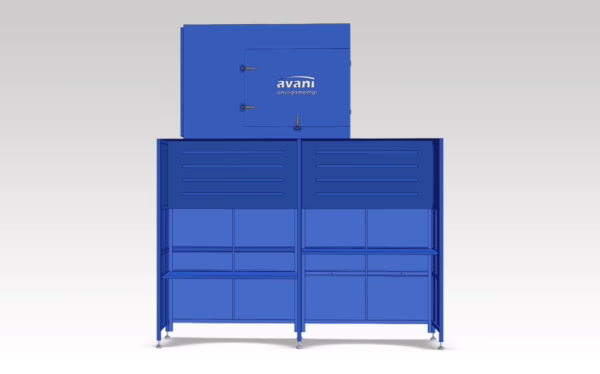

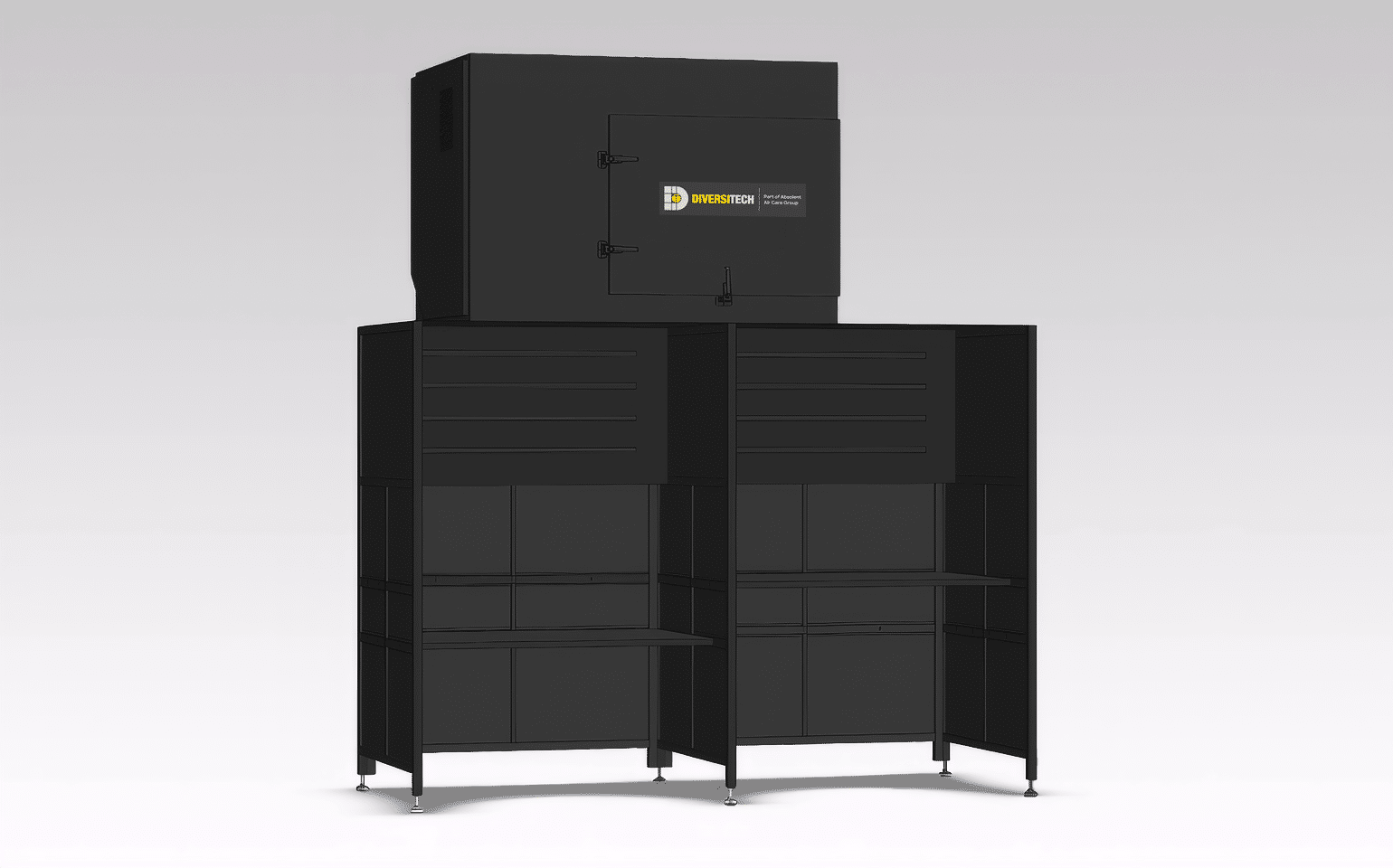

• WB-3555-D: 5' x 5' double booth with shared collector
• WB-3566-S: 6' x 6' single booth with collector
• WB-3566-D: 6' x 6' double booth with shared collector

Standard Features

• Double panel wall construction
• Integral top mounted collector
• Back draft and up draft capability with dampers for adjusting air flow
• Overhead drop down explosion proof lighting
• Adjustable rear shelf
• Electrical/Gas outlets
• Debris clean out drawer
• Adjustable leveling feet
• Differential pressure gauge knows when to replace filters
• Reverse jet pulse cartridge cleaning
• Front filter access

Optional Features

• Welding curtain
• Lazy susan for rear shelf
• J Hooks
• Welder shelf
• VFD
