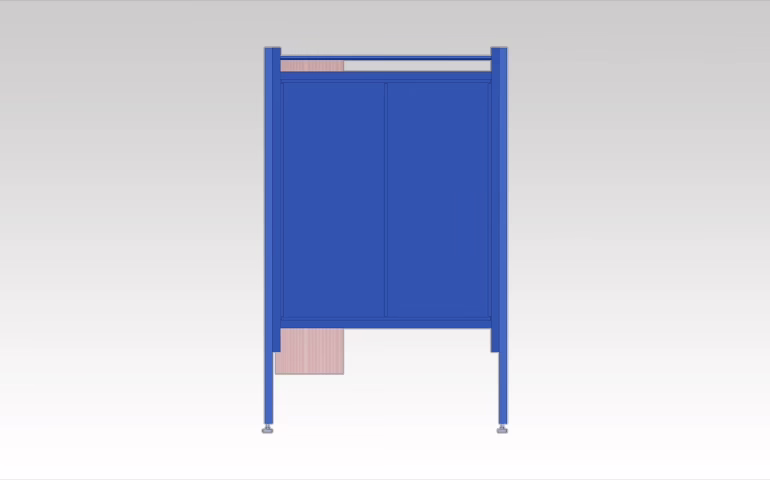

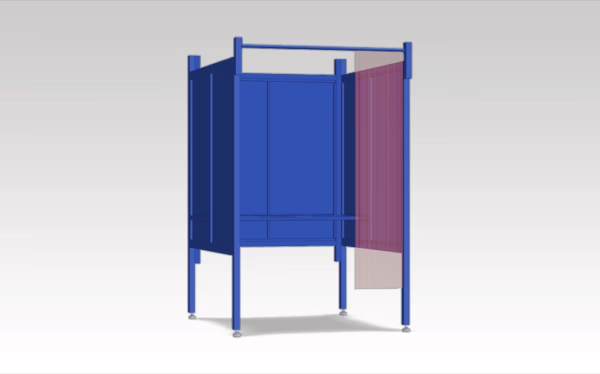

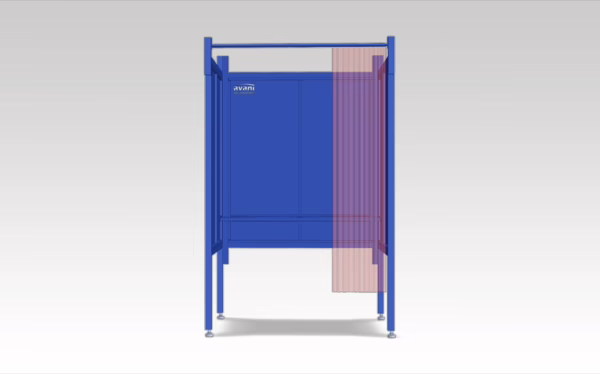

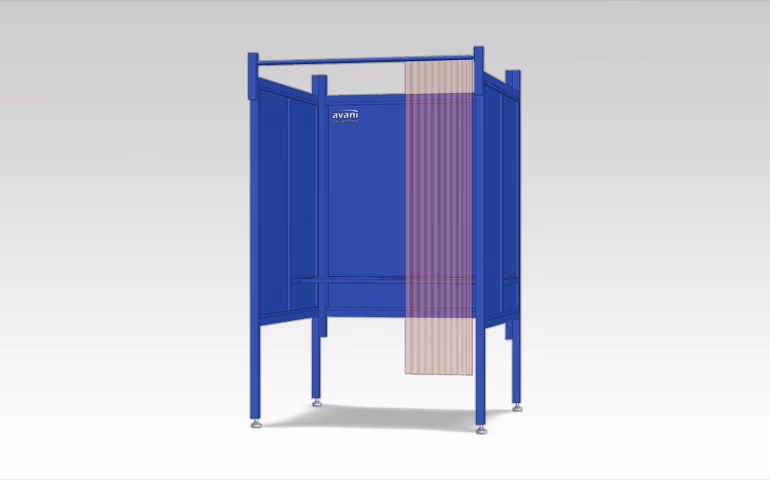

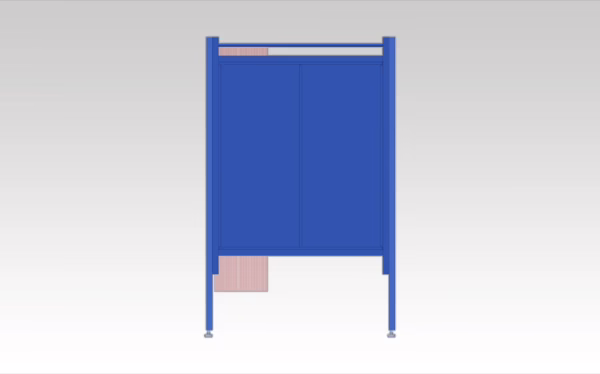

AVANI WB 1000-Series Welding Booth

Overview

The WB-1000 comes standard with partial sides and back panels; however offer full side and back panels as an option. Ideal for either industrial facilities or training, vocational and educational centers.

Fume Arm is optional for point of origin extraction of welding fume and smoke. The WB-1000 can be used as a stand alone unit or integrated into a central system.

Models

• WB-1055: 5' x 5' walk-in booth
• WB-1066: 6' x 6' walk-in booth

Standard Features

• Partial side and back panels
• 12 gauge panel construction
• Support structure 2" x 2" welded square stock
• Welding Curtain Supports (2 welding curtain brackets)
• Adjustable feet (leveling 2" - 5")
• Powder coated Avani blue
• Rear shelf
• Booths can be mounted back to back or side to side based on configuration will share common panels

Optional Features

• Full panels (sides & back)
• Half front panel
• Fume Arm 6" diameter x 7' length
• 110v electrical outlet
• Explosion-proof lighting
• J-Hooks
• Welder shelves
• Air/Gas lines
• Back draft slotted hood
• Fixtures
• Oversized fume arm hood
