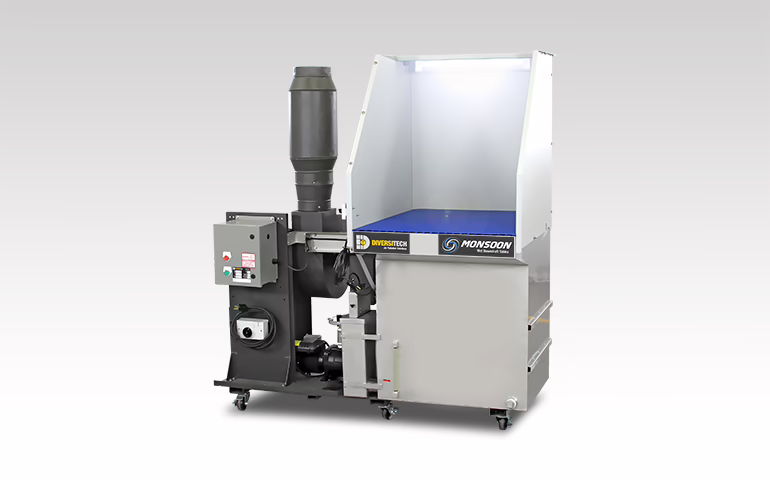

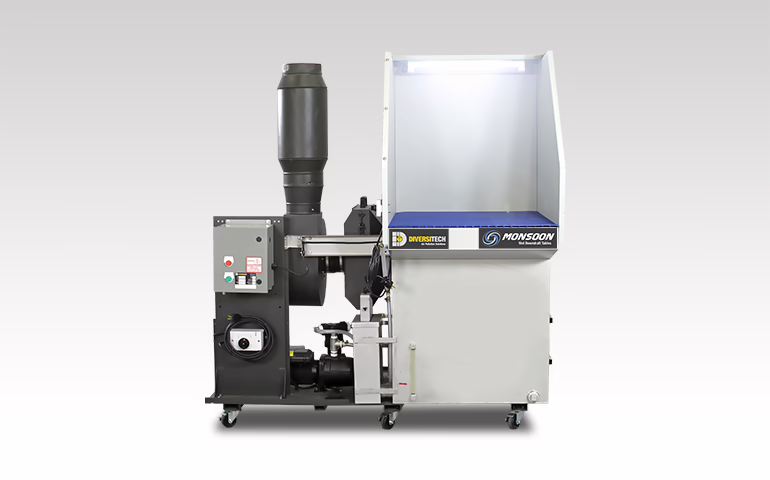

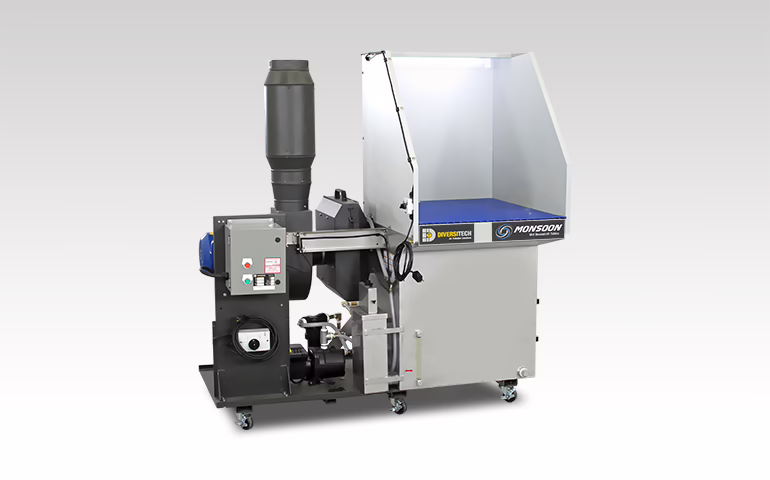

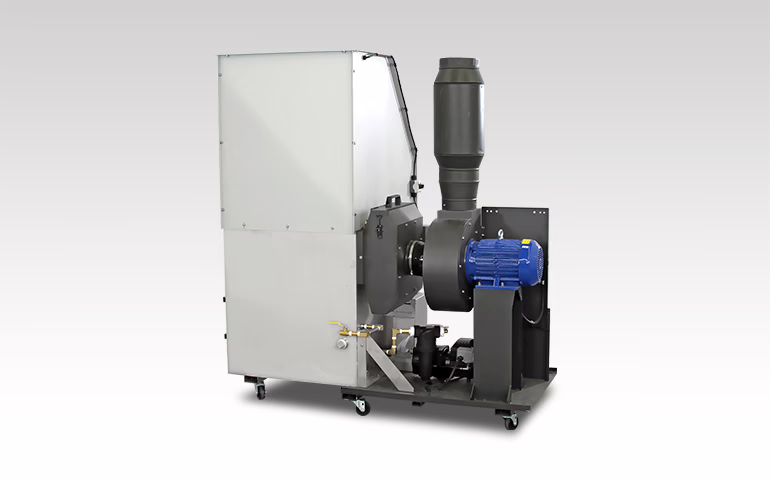

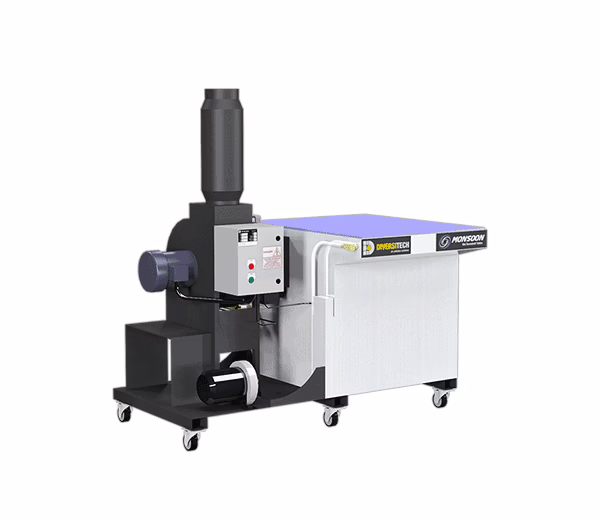

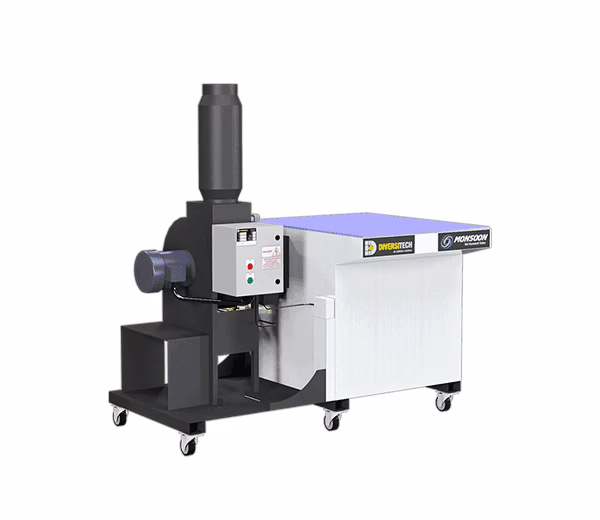

Monsoon Mini Wet Downdraft Table

Overview

Cost-effective yet high-performing, the Monsoon Mini Wet Downdraft Table safely captures combustible dust at source. Requiring no permanent ducting or central installation, its compact, self-contained, patent-pending design achieves a high-face velocity at a very affordable price.

To safely collect dangerous combustibles, the Monsoon Mini pulls contaminated air through its ventilated work surface and moves them into a water torrent. Once bonded with water droplets, the dust particles drain down to the bottom of the collector for safe removal. Interior baffling creates the required turbulence to maximize filtration efficiency while preventing water vapor from leaving the exhaust, avoiding excess humidity.

With an extremely small equipment footprint, the Monsoon Mini Wet Downdraft Table comes fitted with heavy duty castors for portability. The cabinet’s stainless steel construction guards against corrosion and the collector’s internal components can be removed for easy cleaning.

Designed for the safe collection of combustible metal dusts, ideal applications include: aluminum, magnesium, titanium, grinding & deburring, sanding & finishing, 3D printing, chemical dust and buffing.

Benefits

• Capture-at-source for cleaner air
• Industrial swivel castors included for portability
• Compliant with NFPA guidelines for combustible dust

Features

• Flexible 30” x 36” Worksurface
• High Capture Face Velocity (300 FPM)
• 3 HP TEFC Motor producing 1200 CFM of Airflow
• Stainless Steel Anti-corrosion Construction
• Low Water auto-shutdown
• Blue Rubber Grid Matting
• Manual Water Refill

Options

• Auto Wash-down System
• WV-55 Sludge-Vac
• Side and Back Walls
• HEPA Afterfilter Kit (99.99% @ 0.3 micron)
• Dust-Tight / Vapor-Tight Light Kit
• Auto-fill Water Control System
• Custom configurations available on request
