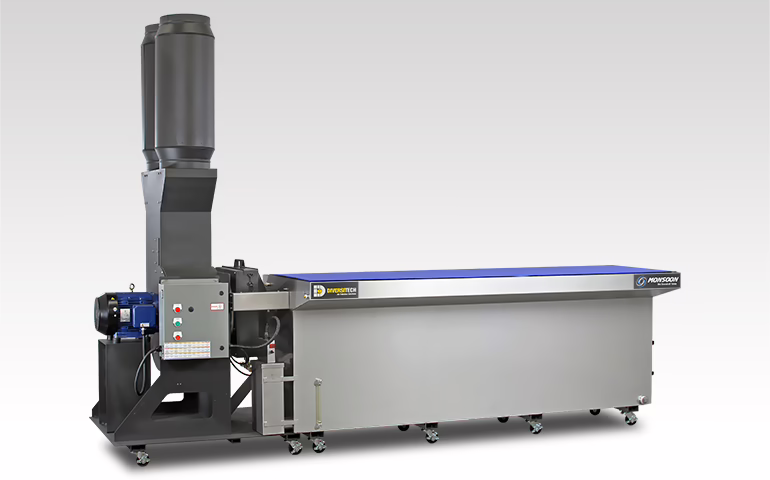

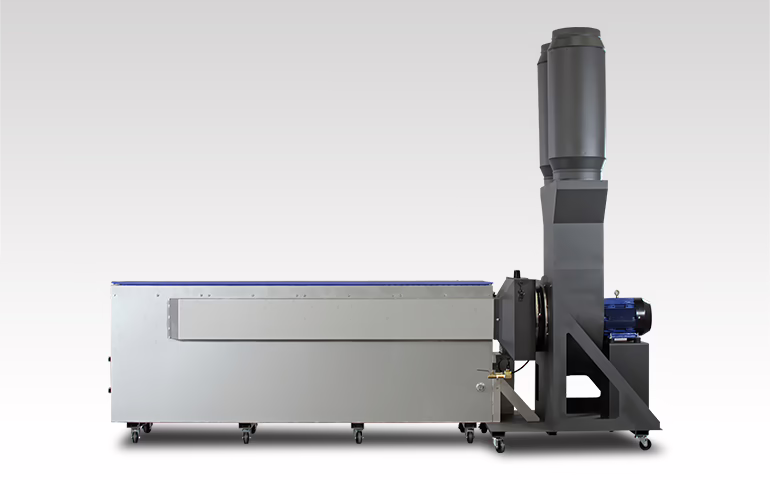

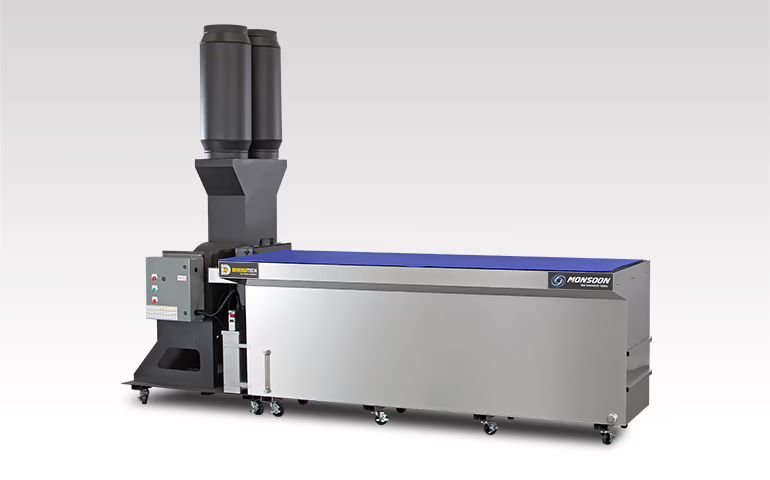

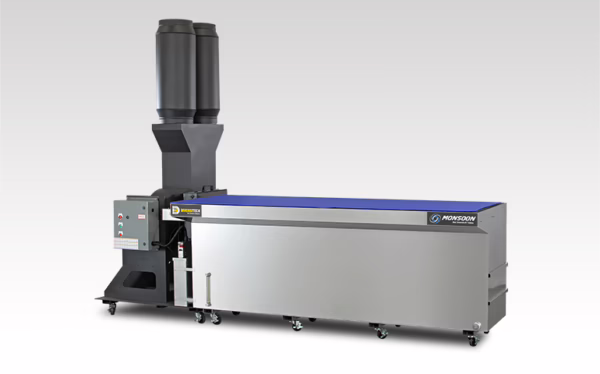

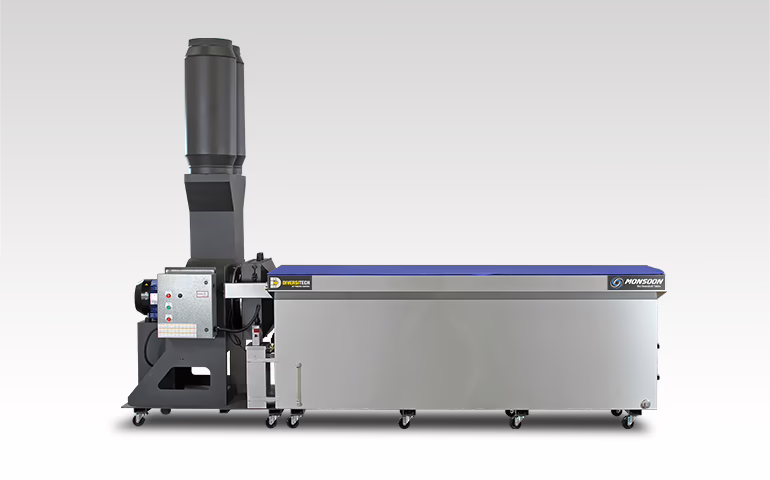

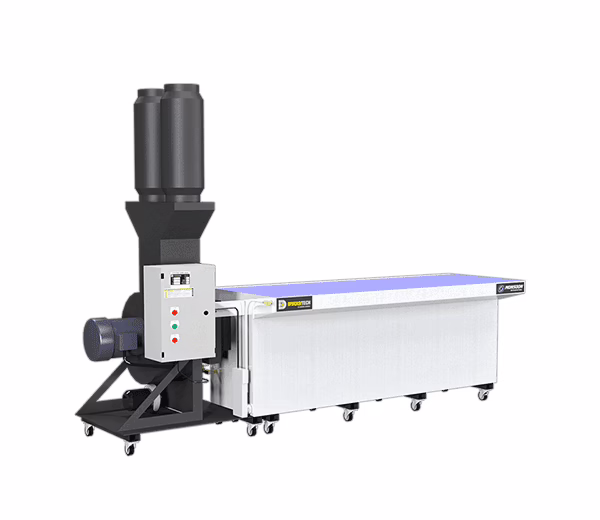

Monsoon 3' X 8' Wet Downdraft Table
Overview
Safely capturing contaminants at source, the Monsoon 3’ x 8’ Wet Downdraft Table provides an all-in-one solution for the collection of combustible metal dusts. Its self-contained design achieves a high-face velocity and requires no permanent ducting or central installation.
The Monsoon 3’ x 8’ safely captures combustibles by pulling contaminated air through the ventilated work surface and moving them into a torrent of water. The dust particles then bond with suspended water droplets before draining down to the bottom of the collector for safe removal. Interior baffling creates the required turbulence to maximize filtration efficiency. A mist-eliminator afterfilter prevents the unit from exhausting humidity and water into the workspace.
The Monsoon 3’ x 8’ Wet Downdraft Table includes a 12” integrated extended overhang that allows operators to sit ergonomically at the table surface. The cabinet’s stainless steel construction guards against corrosion and the collector’s internal components can be removed for easy cleaning.
Designed for the safe collection of combustible metal dusts, ideal applications include: aluminum, magnesium, titanium, grinding & deburring, sanding & finishing, powder mixing and buffing.
Benefits
- Capture-at-source for cleaner air
- Industrial swivel castors included for portability
- Compliant with OSHA and NFPA guidelines for combustible dust
- Small foot-print, easy to use
- Removable water-tree for easy cleanout
Features
- Flexible 96” x 36” Worksurface
- High Capture Face Velocity (230 FPM)
- 15 HP TEFC Motor producing 6500 CFM of Airflow
- Stainless Steel Anti-corrosion Construction
- Auto-Level Water Control System
Options
- Auto Wash-down System
- WV-55 Sludge-Vac
- Side and Back Walls
- HEPA Afterfilter Kit (99.99% @ 0.3 micron)
- Dust-Tight / Vapor-Tight Light Kit
- Custom configurations available on request
