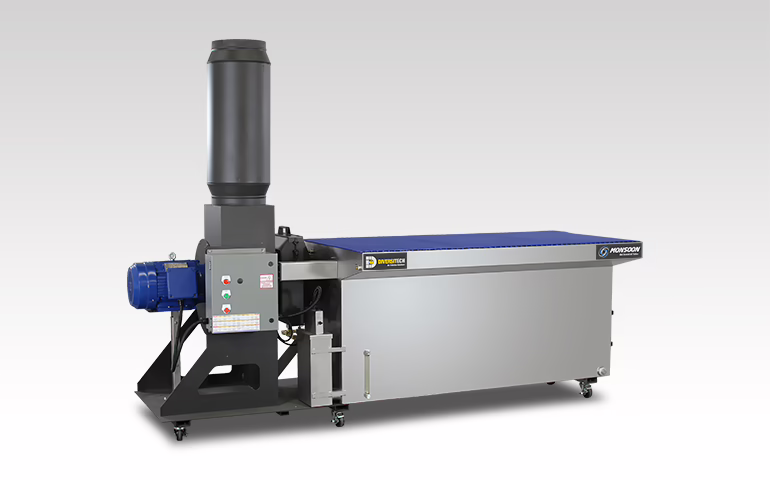

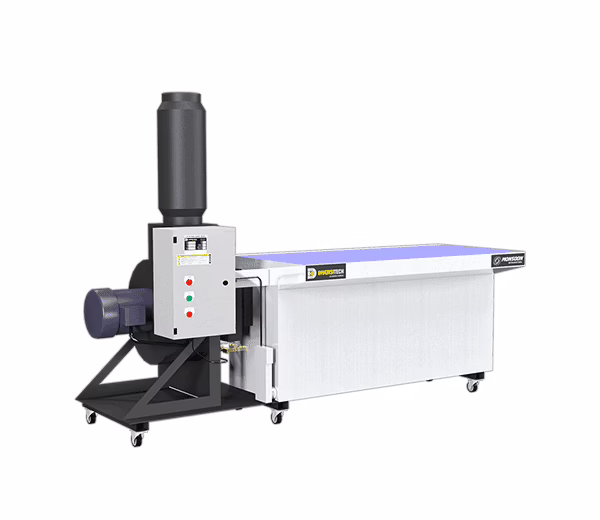

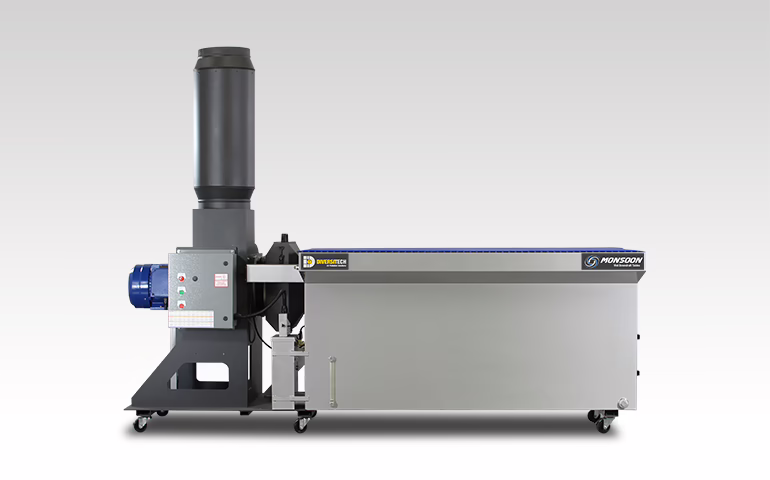

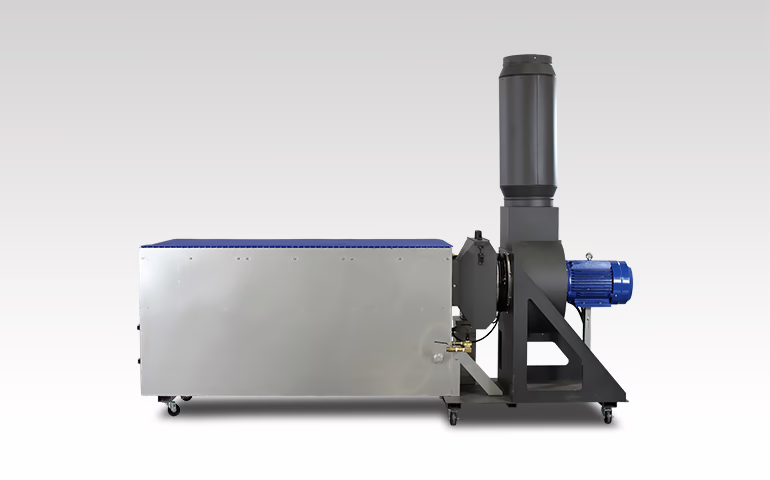

Monsoon 3' X 6' Wet Downdraft Table
Overview
The Monsoon 3’ x 6’ Wet Downdraft Table is one of the most high-performing, cost effective wet dust collection solutions on the market. Safely capturing combustible dust at source, the Monsoon 3’ x 6’ Wet Downdraft Table has one of the smallest equipment footprints in the industry. Its self-contained design achieves a high-face velocity at a very affordable price.
The Monsoon 3’ x 6’ safely captures combustibles by pulling contaminated air through the ventilated work surface and moving them into a torrent of water. The dust particles then bond with suspended water droplets before draining down to the bottom of the collector for safe removal.
The Monsoon 3’ x 6’ Wet Downdraft Table comes equipped with an Auto-Water Level Control System that automatically maintains correct water levels in the basin. The cabinet’s stainless steel construction guards against corrosion and the collector’s internal components can be removed for easy cleaning.
Designed for the safe collection of combustible metal dusts, ideal applications include: aluminum, magnesium, titanium, grinding & deburring, sanding & finishing, powder mixing and buffing.
Benefits
- Capture-at-source for cleaner air
- Industrial swivel castors included for portability
- Compliant with NFPA guidelines for combustible dust
- Small foot-print, easy to use
Features
- Flexible 73” x 36” Worksurface
- High Capture Face Velocity (230 FPM)
- 10 HP TEFC Motor producing 5000 CFM of Airflow
- Stainless Steel Anti-corrosion Construction
- Auto-Level Water Control System
Options
- Auto Wash-down System
- WV-55 Sludge-Vac

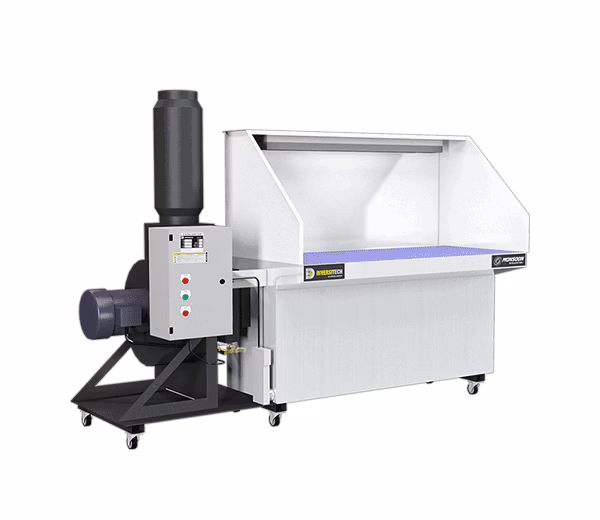

- Side and Back Walls
- HEPA Afterfilter Kit (99.99% @ 0.3 micron)
- Dust-Tight / Vapor-Tight Light Kit
- Custom configurations available on request
