Robotic Weld Cell Collector

Overview

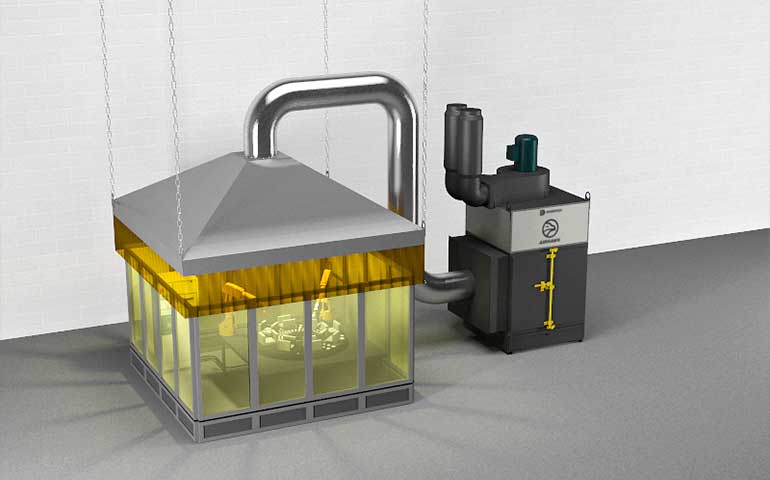

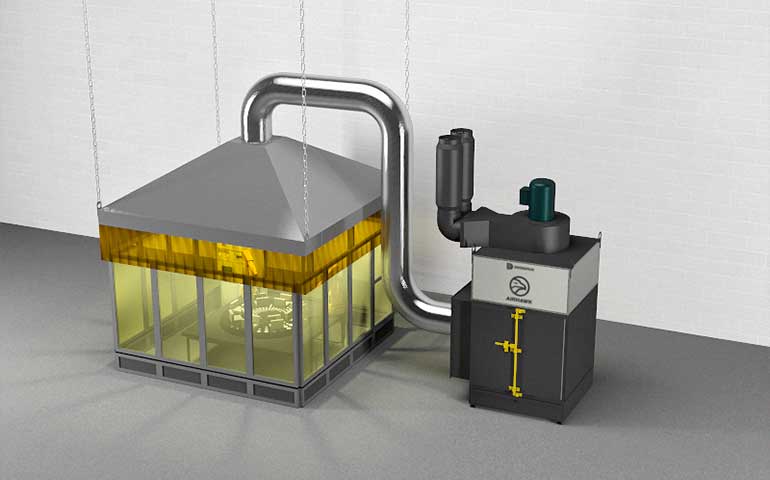

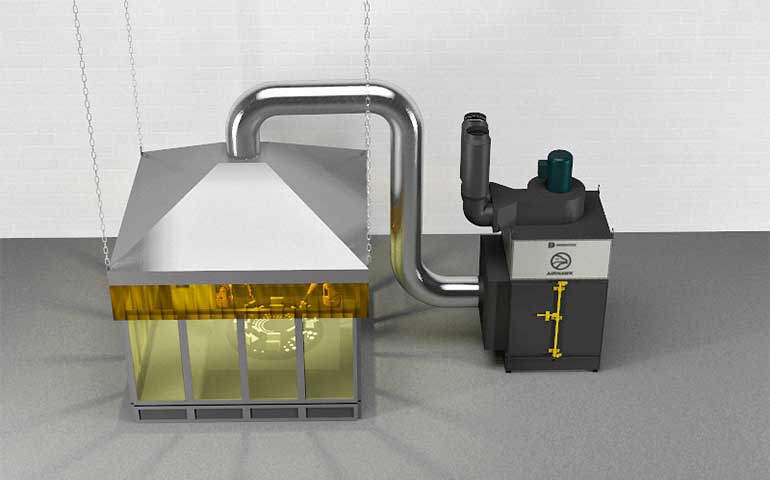

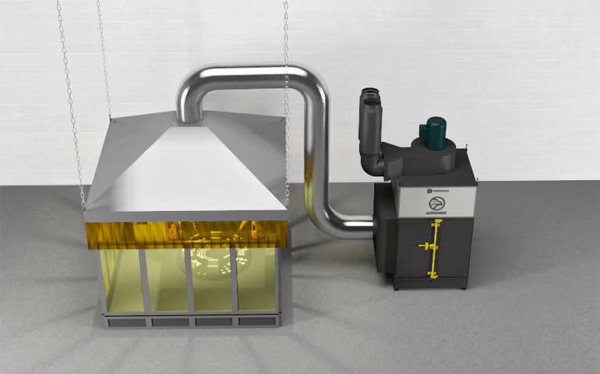

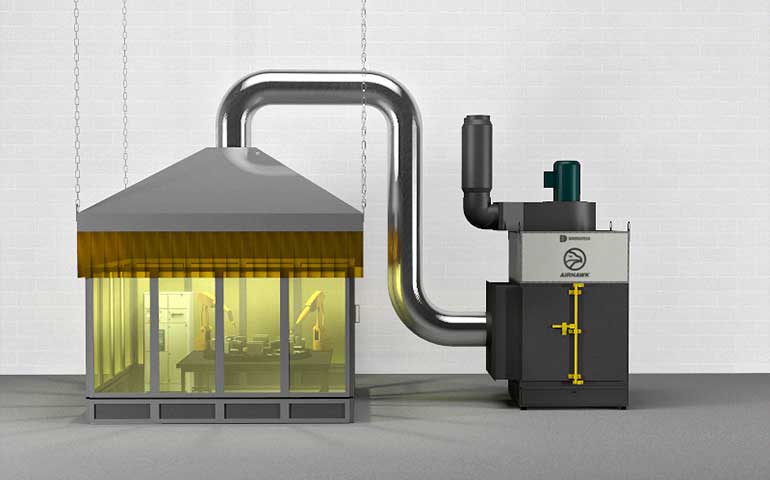

Diversitech's Robotic Weld Cell Collector offers an affordable, self-cleaning welding fume extraction & filtration unit for light to heavy-duty applications. The compact self-contained design makes relocation and installation fast and simple. The unit is typically mounted above a welding cell on a steel support frame, conserving shop floor space. The smoke collector comes standard with reverse pulse filter cleaning, extending filter life while reducing maintenance intervals and filter replacement costs.

The high-efficiency filter cartridges collect 99.8% of all particles 0.5 microns and larger before returning air to the facility. Higher efficiency nano-fiber and HEPA filters are available for stainless steel and galvanized steel robotic welding fumes.

Options

• 4, 6, 9 or 12 filter cartridges depending on duty cycle
• 2500, 4000, 6000 or 8000 CFM blower packages

Benefits

• Saves valuable floor space
• Capture-at-source for Cleaner Air
• Complies with OSHA guidelines for controlling weld fumes

Features

• Spark arrestance baffling extinguishes sparks before they reach the filters
• Several ductwork setups available
• Dust Drawer and Filter Access Door facilitates ease of maintenance
