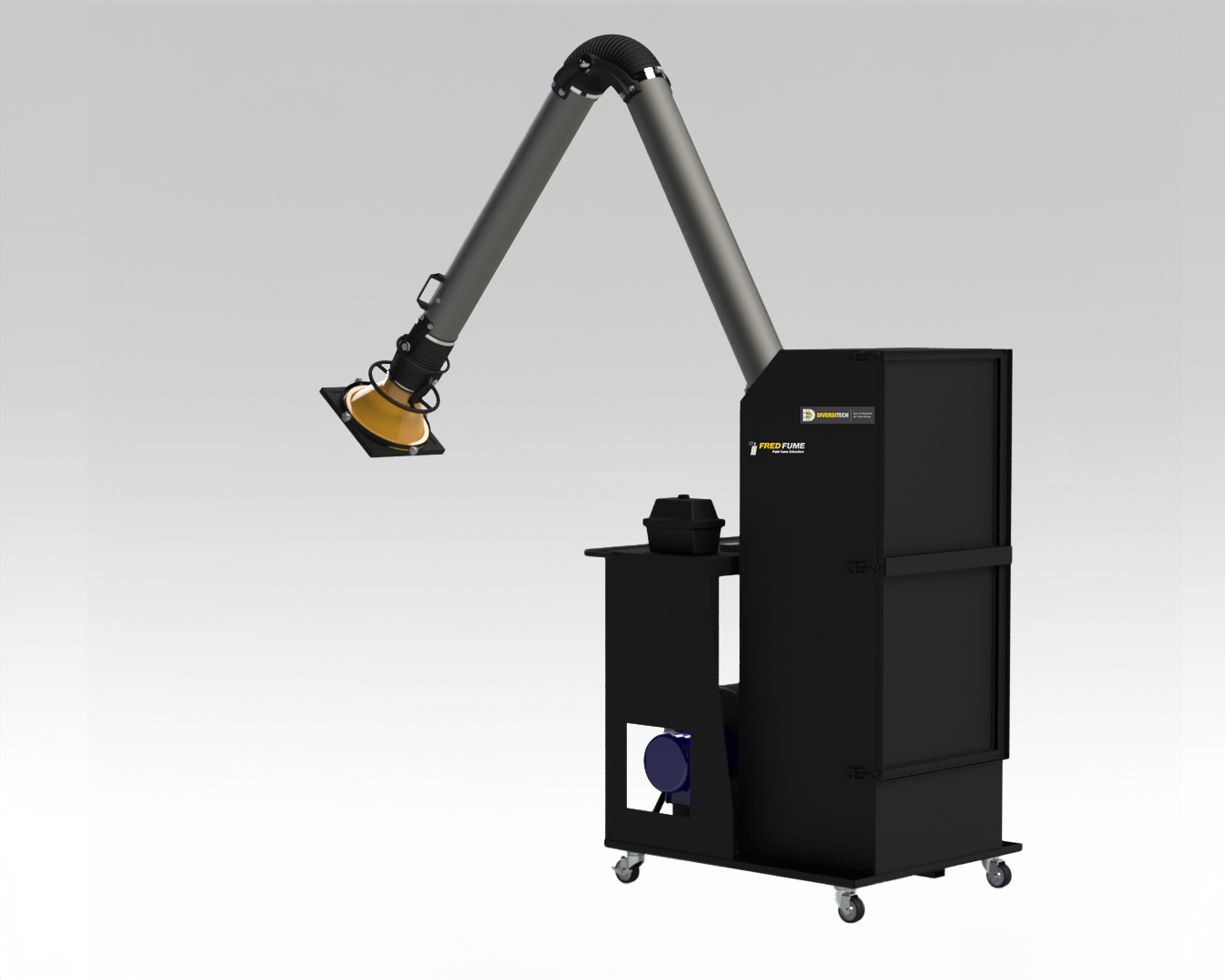

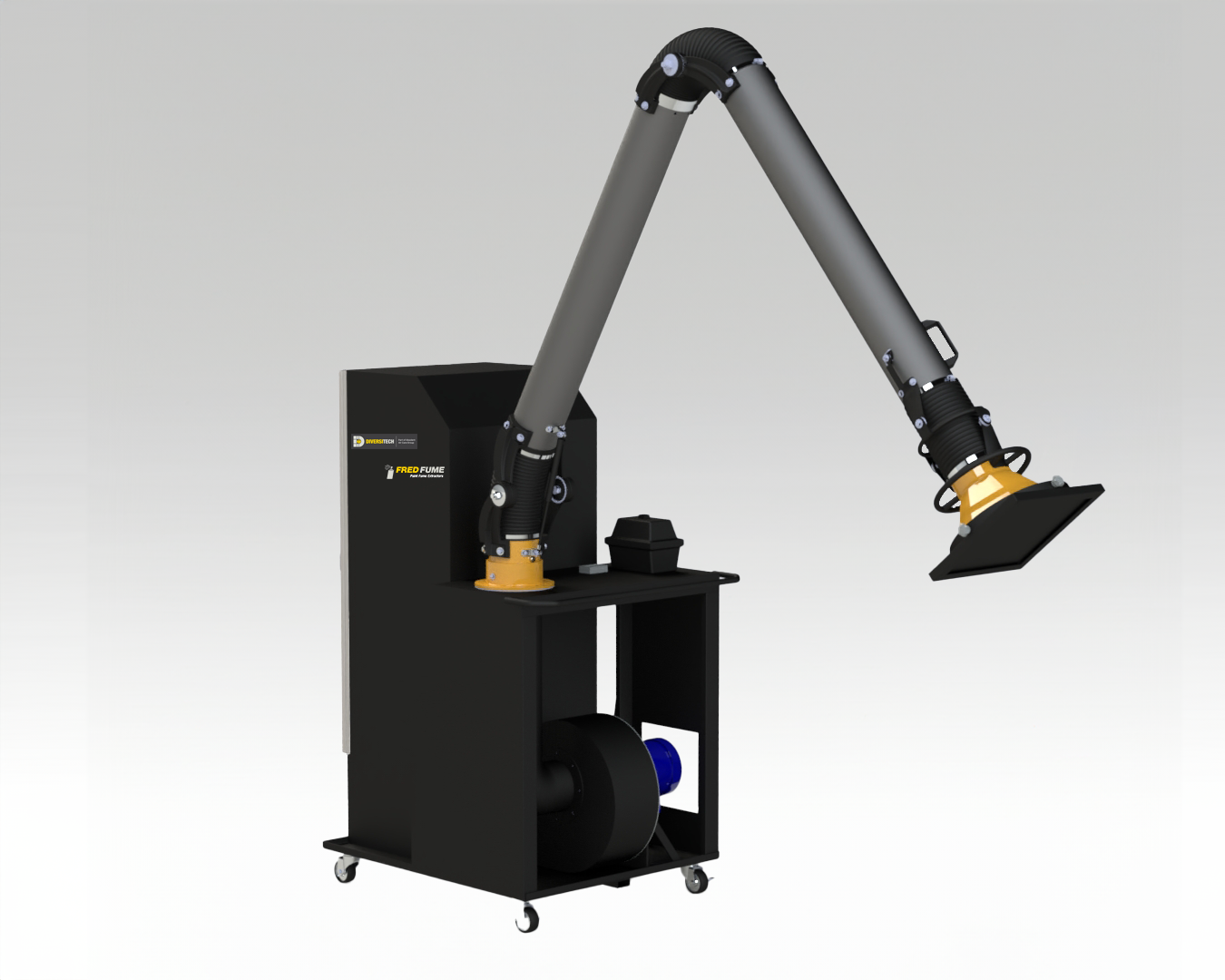

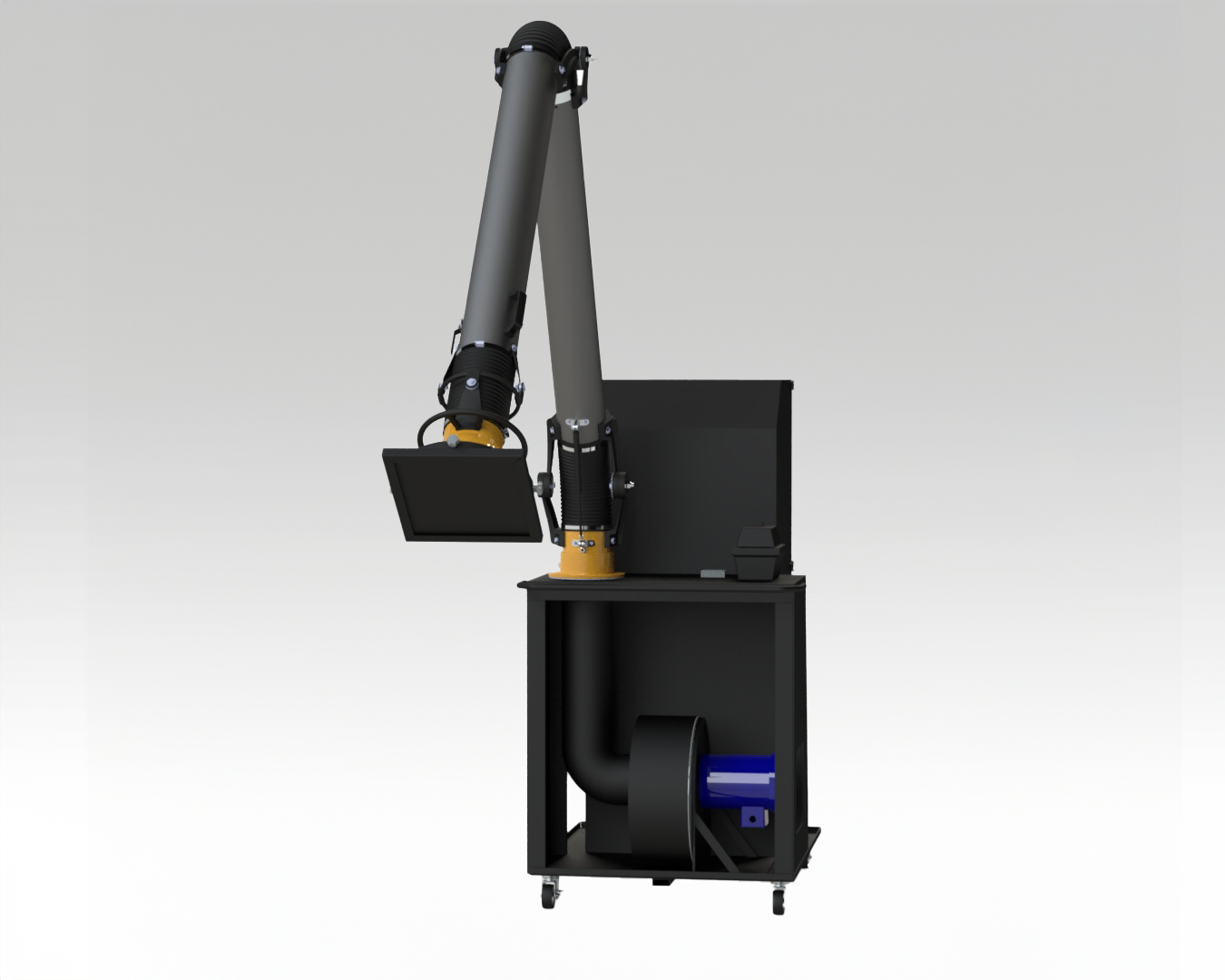

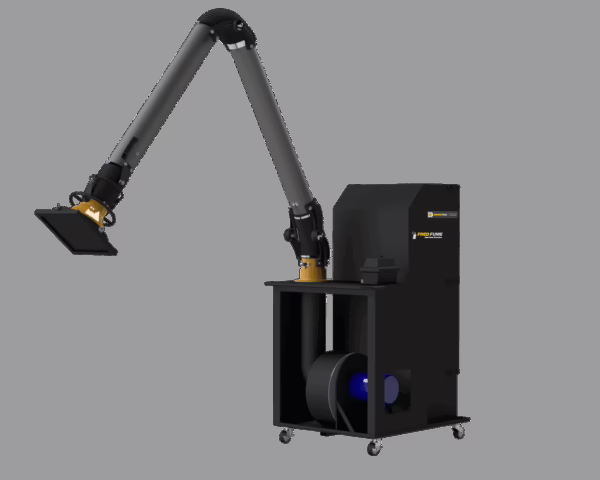

FRED Overspray Master: Portable Fume Extraction System

Overview

A professional grade, portable paint fume extractor, the FRED Overspray Master captures and filters overspray from touch up painting in automotive, aerospace, and industrial applications. The compact and portable design allows paint work to be done safely where needed, saving time and money associated with traditional fume extraction system setup costs.

The Overspray Master’s 10’ XA2 Series capture arm, with external pantograph style articulation, ensures ultra-smooth repositioning while protecting components from wear and tear. Experience the ideal balance between flexibility and robust design for superior longevity, even after repeated use in industrial environments.

The portable fume extraction system includes a hood mounted paint pocket arrestor prefilter, four MERV 11 primary filters and 2 extruded carbon afterfilters for VOC fumes. Filters comply with the National Emission Standards for Hazardous Air Pollutants (NESHAP) 319 standard for toxic chromate coatings and primers, commonly found in aerospace painting applications.

Benefits

The FRED Overspray portable fume extraction system offers these key benefits in painting applications:

• Compliant with NESHAP 319
• Capture-at-source for cleaner air
• Compact, portable, and easy to operate

Features

Purpose-built for painting, this configuration is tailored for highly effective VOC filtration with the following features:

• Flexible 10’ externally articulated capture arm
• 1200 CFM of Airflow • 1.5 HP, 120v/1/60hz blower
• 1 x Paint pocket filter on hood • 4 x MERV 11 pleated panel filters
• 2 x 24”x 24”x2” carbon afterfilter • 15” power cord & casters

Options

For added flexibility, FRED Overspray is available with the following options:

• Explosion proof motor and starter
• Choice of 6.5’, 10’ or 13’ capture arm
• Dual-arm configurations
